V5-MC104 Motion Controller

V5-MC104 Motion Controller

  • Support multiple programming languages
  • Support a variety of communication modes
  • Support 16-axis synchronous motion; control cycle is within 1ms
  • Adopt a multi-axis closed-loop high-speed pulse acquisition interface

V5 motion controller  Overview



The V5-MC104 series motion programmable logic controller is a multi-axis motion controller developed based on a high-performance processor designed for various industrial automation environments.



V5 Motion Controller Overview



1. Support 16-axis synchronous motion, control cycle 125s-1ms.
2. Powerful I/O management and functions meet the logic control requirements of the control system.
3. Modular thinking, convenient function module packaging.
4. Good inheritability, shorten the project development cycle.
5. Users can choose the programming method according to their own habits.
6. Integrate multiple function blocks, just call to apply.
7. Support multiple communication methods.
8. A variety of programming methods, easy to use.





Wide range of applications

1. Support jog movement, linear interpolation, arc, 3D arc, electronic gear/cam, etc.
2. Built-in a large number of convenient industry function instructions, such as winding, tracking shear, flying shear, packaging, and other industry modules, make the application very simple.
3. Function blocks such as integrated synchronous follow-up, full-closed-loop control, and multi-axis cooperative motion control can be applied simply by calling.



Wide range of applications





Dual-core main chip, better performance

1. The main chip has dual-core processing and powerful logic operations.
2. The output frequency can be up to 3M.
3. The minimum control period can reach 125s.



Dual-core main chip, better performance

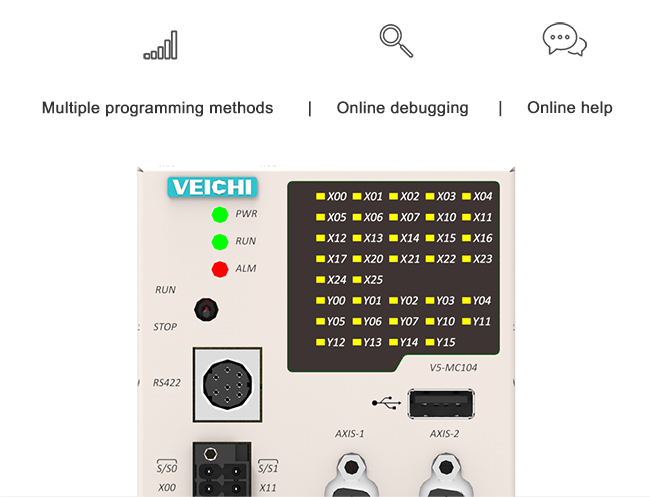

Support online debugging, more convenient operation

Support online debugging, more convenient operation



1. It supports four programming methods including ladder diagram, instruction list, MC instruction, and G code.
2. Support online debugging and online simulation debugging.
3. Users can quickly find help through the detailed online help function.

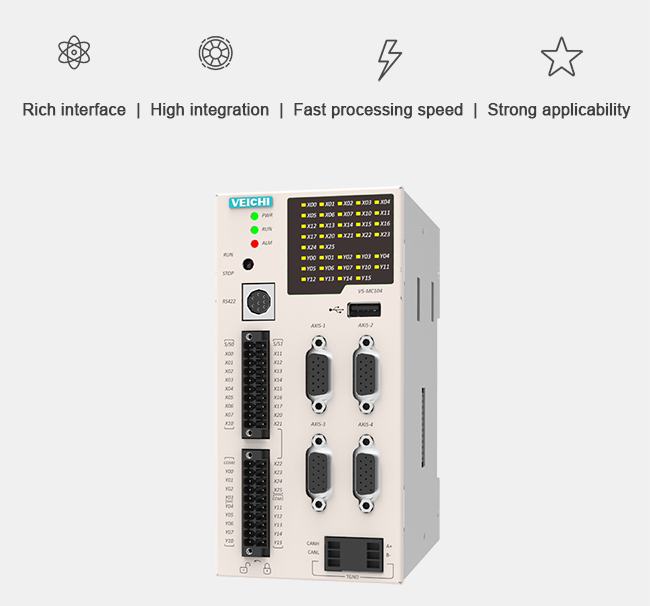

Support multiple interfaces, more comprehensive expansion

Support multiple interfaces, more comprehensive expansion



1. Support multiple communication methods such as RS422, RS485, RS232, CAN, EtherNet, etc.
2. Support USB HOST interface, file copy, and system upgrade.
3. 4-channel AD, 2-channel DA.
4. Expandable input and output interface.



Higher security, more reliable system

Higher security, more reliable system



1. Support user program encryption, multiple encryption.
2. Support user program encryption, multiple encryptions.
3. Have higher seismic resistance and interference capabilities.



Structural design is more in line with industrial site installation requirements

Structural design is more in line with industrial site installation requirements



In the structure, the traditional motion controller design method is abandoned, and the book design is adopted, which is more compact and beautiful. The DIN rail installation also saves a lot of space.





V5-MC104 Motion Controller Video





Industrial Applications for V5 Motion Controller



Applications:Woodworking machinery, textile machines, industrial robots, chase shears, flying shears and other occasions.
